XL Zipshade
The Zipshade® XL is the latest addition to the Zipshade® family - a high-performance vertical screen system designed to deliver advanced solar shading and exceptional wind resistance for oversized residential and commercial openings.
Engineered in the USA for Maximum Performance

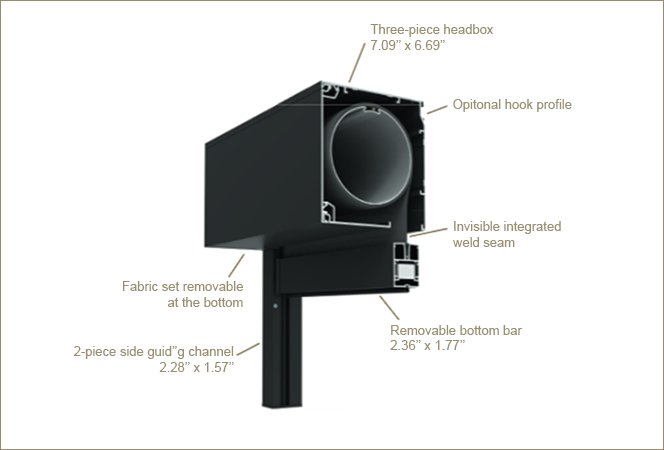

The ZIPSHADE® XL features Renson’s Connect&Go technology and a removable bottom bar with a safe, click-on/click-off design, making installation quick and hassle-free while ensuring a sleek, finished look. Its newly developed spring system absorbs impacts, protecting the fabric and extending product life.
The system can be installed in several ways:
- Open-Structure Mount – Installed on pergolas or porches, instead of directly on a wall or window.
- Surface-mounted – Mounted directly on the exterior wall in front of a window.
- Recessed – Built into the wall surface so the box and guides are hidden.
- Bracket-to-bracket without a headbox – Installed using only the side brackets, without the top headbox. This option reduces both weight and cost while maintaining performance.
Each method offers flexibility depending on the project’s design, space constraints, and desired visual finish.
Key product advantages
- Made-to-measure in the USA
- Covers openings up to 23 feet wide and 10 feet high*
- Withstands winds up to 100 mph at maximum size
- Spring system for impact absorption
- Headbox available in 10 standard RAL colors (custom RAL colors available at a surcharge)
- Eight standard glass fiber screen fabrics available
Downloads
Technical specifications
| Alignment | Vertical |
| Maximum dimensions* | 22 ft 11 5/8 in x 9 ft 10 1/8 in |
| Depth of the case | 7 1/16" |
| Height of the case | 6 11/16" |
| Mounting options | Open-structure mount featuring a fully finished head box. |
| Product warranty | 5 years |
| Fix screen technology warranty | 7 years |
| Guaranteed wind resistance in closed position | 100 mph at maximum size |
