Healthbox 3.0: Even smarter installation


Want to install healthy air in a home with even more simplicity? You can, because soon Healthbox 3.0 will offer even more ease of installation — at no extra cost.

Curious about what will change?

Healthbox 3.0

1. Easier to connect

The adaptor ring with rubber is a new part in the range that serves as an adaptor between the control valve and air flexible.

The adaptor ensures that no deformation occurs at the control valve when connecting the air-flexible and that the air-flexible can be easily disconnected from the control valve for service, if needed.

Advantage:

  1. There is no more need to cut open an adaptor cap to make an adaptor. This ensures time savings during installation and is also safer in operation.
  2. The rubber connection has the following advantages in combination with the RENSON aluminium flexibles (Aludec, Isodec, Acoudec):
  • Airtight connection: a tension clamp is no longer necessary, again saving time.
  • The shape of the rubber ensures a rock-solid connection between the flexible and the adaptor ring

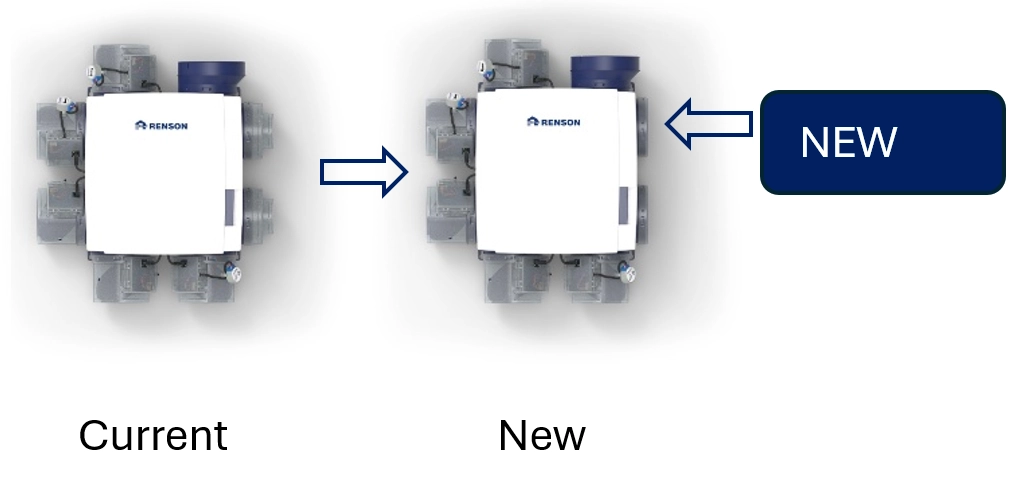

The adaptor caps in the Healthbox 3.0 motorKIT will be functioning as a cover plate only. To make the installation even more compact, the current adaptor cap is replaced by a flat cover plate.

The adaptor cap at the ventilation collector T-piece will undergo the same modification.

Healthbox nieuw
Healthbox

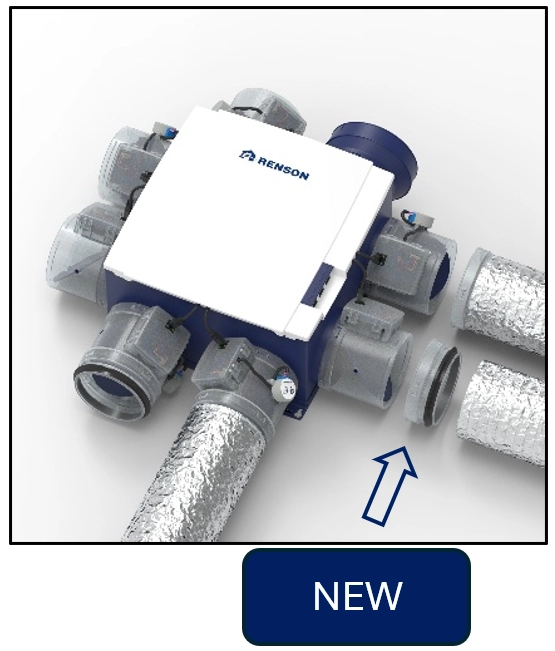

Healthbox 3.0 with ventilation collector with the flat cover plate and adaptor ring with rubber

Healthbox

The increased compactness in certain cases allows Healthbox 3.0 to be placed between the beams of the roof truss.

Modification of the KITs

The KITs control valves are modified in the 1st phase, while the KITs motor unit and valve collector are modified in a 2nd phase.

Huidige KIT
Nieuwe KIT
Aanpassing
CONTROL VALVES
Regelmodule
Regelmodules Renson


Applicable to all control valves:

  1. Clamp disappears from KIT
  2. 1x Adaptor ring with rubber Ø125 is included



MOTOR UNIT
Motor unit
Motor Unit renson


Applicable to all motor KITs:

  1. 7x Adaptor cap ø80/125 disappears from the KIT
  2. 5x Flat cover plate (ø125) is included

(3x for the SmartZone motor KIT with 5 control modules)




VALVE COLLECTOR
Klepcollector
Motor Unit renson


  1. 2x Adaptor cap ø80/125 disappears from the KIT
  2. 1x Flat cover plate (ø125) is included

The adaptor cap (ref 17068) and metal clamps (refs 66014110 and 66014111) remain optionally available. Adaptor rings with rubber ø80 (ref 36829) will be available as accessories from approx. Jan 2026.

2. More energy-efficient type CO2 sensors

Kitchen Bedroom

A new type of CO2 sensor is used in the 'Kitchen' and 'Bedroom' control valves.

Operation remains unchanged. The advantage of the new type of sensor is lower power consumption, allowing more control valves with CO2 sensors to be placed in a configuration.

The current manual on the website shows how many control valves with a CO2 sensor can be used per configuration: link (section 10.3.3)

Het nieuw type sensor is van toepassing wanneer de melding V0005 op het etiket van de doos KIT staat (voordien was dit SW0004).

3. SmartConnect: 1 USB connector

The cover of the motor unit is being updated; in the SmartConnect zone, only 1 USB connection will be available (instead of 2). The USB connection serves only to connect the Wi-Fi dongle.

The change will be implemented roughly in parallel with the modifications to the motor KIT.
